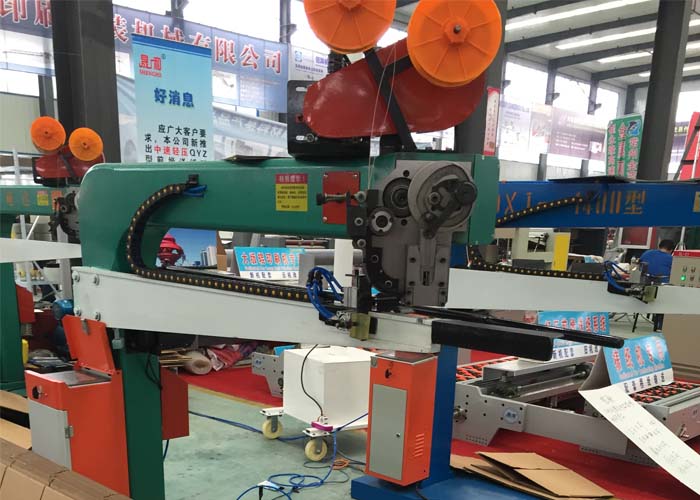

Manual Carton Box Stitching Machine , Corrugated Box Making Machine

Production process editor
The process leader and the squad leader can each take a carton and carry out the first inspection of the product separately. When the product is checked, the carton is placed under natural light. The main matters to be noted are as follows:
1. The nails should be fixed, fixed, and must not have the phenomenon of stacking nails, missing nails, stabbing, broken nails, curved nails, no corners, etc.
2. When the nail box is set, the two blanks should be aligned, and the scissors opening should not appear;
3. After the box is folded, the box will be square. The difference between the two diagonals of the top surface of the carton with the integrated size less than or equal to 1000mm shall not exceed 3mm, the comprehensive deviation of the inner diameter of the single corrugated box shall not exceed ±2mm, and the double corrugated box shall be no more than ±4mm. The difference between the two diagonals of the top surface of the carton with a comprehensive size greater than 1000mm shall not exceed 5mm. The integrated deviation of the inner diameter of the single-carton carton shall not exceed ±3mm, and the double corrugated carton shall not exceed ±5mm.
4. The diameter of the box corner hole is not more than 4mm2, and there must be no obvious wrap angle. The outer flap should be no more than 2mm from the seam or overlap.
5, nail box can not appear the phenomenon of inverted nails, yin and yang surface, variety, specifications and two pieces of box blanks must not be wrongly set together.

Main Parameter

Hebei Jinguang Packing Machine Co.Limited is a professional corrugated carton printing equipment and related machinery for carton production over ten years.Our company is located in the Lisiwei industrial part ,Dongguang country Hebei Province.Our main products are corrugated carton box printing,slotting,die cutting machine (simiauto,automatic).Middle high speed corrugated paperboard production line,automatic folder gluer machine,stitching machine,flute laminator ,thin blade slitter,partition machine ,automatic assemble machine,binding machine and so on.
