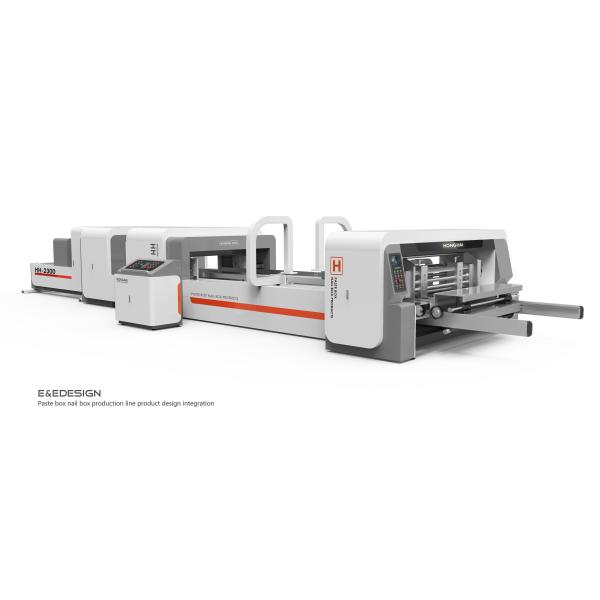

KQDJ-2400 High Speed Automatic stiching and gluing Machine

The automatic nail sticking machine is composed of paper feeding, folding part, nailing part and alignment part. Frequency conversion speed regulation, simple and reliable operation. Automatic folding, automatic counting, automatic stacking output. The average nail box speed is 80 m / min, 40-70 pieces. . .0-800nails/min

Paper feed department

• Adopt the leading edge of the belt to suck paper, which is accurate and reliable.

• Adopt high-grade electromagnetic clutch and electromagnetic brake system, so that the paper feeding section can be controlled independently, and the operation is simple and reliable.

• The paper pressing wheel is adjustable, suitable for cardboard thickness of 2-12mm.

• The front baffle and paper feed belt of the paper feed section can be adjusted left and right.

• The main motor adopts frequency conversion speed regulation, the system has no noise, and the speed regulation is flexible and stable.

The imported high-friction belt is used to convey the cardboard, which is automatically folded.

• Counting and accumulating section

• Using digital control, simple operation, reliable action, input data without stopping, automatic counting, accurate output.

• With correction function, the deviation is adjustable.

• Pneumatic mode is used for counting and pushing, the action is reliable, accurate and fast.

Mechanical size: L1400 * W3500 H1700 Weight: 6 tons

2. Motor power: 380V 11KW special energy saving.

3. The main components are imported originals.

4. Motor Motor Taiwan Taibang Hangzhou Zhenyu

5. Mitsubishi Electric, Omron PLC

Hebei Jinguang Packing Machine Co.Limited is a professional corrugated carton printing equipment and related machinery for carton production over ten years.Our company is located in the Lisiwei industrial part ,Dongguang country Hebei Province.Our main products are corrugated carton box printing,slotting,die cutting machine (simiauto,automatic).Middle high speed corrugated paperboard production line,automatic folder gluer machine,stitching machine,flute laminator ,thin blade slitter,partition machine ,automatic assemble machine,binding machine and so on.
