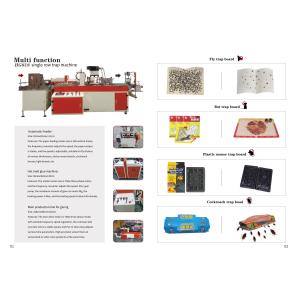

Pest Control Glue Trap Making Rat Killer Machine With Automatic Put
Buttons Function
Main technical parameters
MACHINE DETAIL PARAMETER
1) Main feature of single-row machine
B. Producing standard Mouse glue traps, fly glue traps, Cockroach
glue houses on at least 3600 pieces each hour
C.Sheet iron under bellows is seal treatment ,more appearance
optimization ,more elegant appearance
D.Anyone of our machines can make Mouse glue traps,rat plastic glue boards,wooden glue boards , fly glue traps, Cockroach glue houses and so on.
Machine feature:
1.Full automatic Microcomputer control,touch screen in English
,easy operate
2.adopt for opposite adsorption formula glue gum,coating
evenly,with counter-acting force when the glue off ,without
trailing and drop glue
3.can automatic feed cardboard under machine working condition
4.automatic feeder can feed cardboard piece by piece ,not appear
missing piece and more pieces phenomenon
5.machine adopt for whole sealing design,all electric equipment are
inside,with ground fault protection ,safety and better performance
6.coating use 45degree device,Prevent stroke in a plastic adhesive
effect due to the excessive speed leads to instability
7.glue tank 40kg (we also have 20kg ,,80kgs 150kgs )
8.glue coating size 210mm ( if have special requirement we can
according requirement to make)
machine working process:
automatic feeder trap board material-------automatic coat glue on
board-------stack final traps by manual
Machine spare parts for free
Machine spear part list(Export model single row packing list )you do not need change any parts within 1-2years
GLue trap machine part
Item | Name | Unit | Qty |
| 1 | PT100 temperature control meter | pcs | 2 |
2 | Solid state relay(40A) | pcs | 4 |
3 | Fuse and its seat | set | 3 |
| 4 | Aviation plug(big,small) | pair | 1 for each |
| 5 | PT100 temperature sensing head | pcs | 3-4 |
6 | Return valve | pcs | 1 |
| 7 | Filter core(big,small) | pcs | 1 for each |
| 8 | Hose connector 45 | pcs | 4 |
| 9 | Sealing ring, gasket (including gear pump oil seal) | | several |
| 10 | Flat sealant | bottle | 1 |
11 | Filter | pcs | 1 |
12 | Polytetrahydrogen tube | meter | 1 |
| 13 | Copper sheet | pcs | several |
| 14 | Various types of screws | pcs | 1 |
| 15 | Glue gun body: (with thimble 4) | pcs | several |
