Customized Fully Automatic Mouse Glue Trap Making Machine

Ask Lasest Price
Brand Name :	KSPACK
Model Number :	HG898+80kg
Certification :	ISO ,CE
Price :	Negotiable
Payment Terms :	Western Union, L/C, T/T
Supply Ability :	30sets per month
Delivery Time :	30-50days after getting deposit

Add to Cart

Product Details
Company Profile

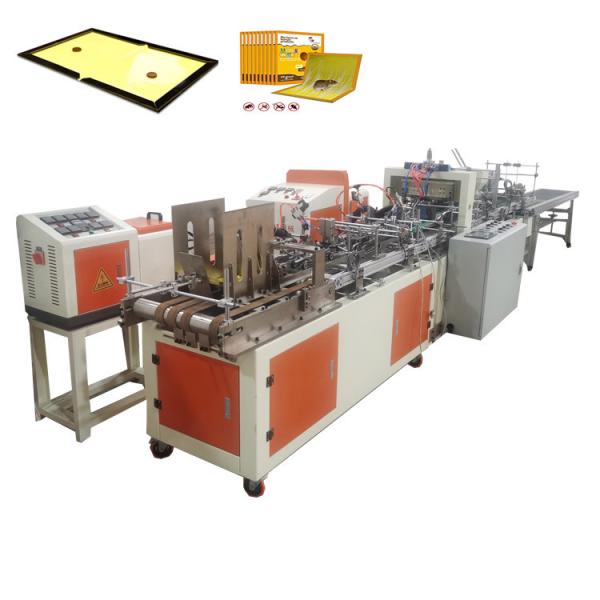

Customized Fully Automatic Mouse Glue Trap Making Machine

New Design Fully Automatic Pest Control Rat Glue Trap Making Machinery Sticky Mouse Glue Traps Machine

1)Brief introduction for Sticky Mouse Glue Traps Machine

full-automatic rat glue trap making folding and gluing machine is
high efficient automatic production equipment for rat board glue
traps .
Rat glue trap making machine includes : automatic paper feeding part , automatic folding edge
part, automatic gluing part , automatic material spraying part,
automatic spacer put part , automatic fold final products part
.multi function finished one time .This model Rat glue trap making machine can move the folding machine section separately and connect the
automatic paper feeder with the gluing section, can produce other
products such as sticky board, magic blanket, mosquito killer lamp
sticky board and fly glue catcher (semi-automatic operation,
according to product requirements)

2)Structure for Sticky Mouse Glue Traps Machine

whole machine composed of eight parts: a, automatic paper feeding;
b. Automatic edge folding (4-way edge); c. Automatic
gluing+automatic spraying bait; d. Automatic put seperate button
(spacer); e. Automatic folder final products belt; f. 5KG capacity
hot melt machine,(this for coat glue for fold edge) four hose pipes
and three sets glue coat guns; g. 40kg hot melt machine, 1 hose
pipe and 1 set of glue gun,for glue glue to board h. 1set 150kg
glue melting pot (for heat the glue in advance and extend
continuous production time ,it can direct connect with 40kg glue
tank )

3)Specific for Sticky Mouse Glue Traps Machine

HG-909 fully auto mouse glue trap machine
A.Machine size and weight	Floor Space	7mx2m
A.Machine size and weight	Weight	950kg
B.Factory Facility Supply Requirements	Machine motor	30kw
	Working pressure	AC 380v ±10% 50 Hz
	pressure/pipe diameter	Min2-6Kg/㎡,pipe diameterφ8
	Environmental requirements	Clean, separate material machines, equipped with fire extinguisher facilities
C.Device control method	programmer	Plc controller and 7 inch touch screen
C.Device control method	constant temperature heating	PID control
D. mouse board size range	Width	170mm-300mm
	Glue coating size	130mm-260mm
	tolerance range	±0.5mm
E.configure	Control system	PLC:yonghong
	Control system	Touch screen: Fanyi
	Transmission ,fold	Servo control:Hui chuan
	Auto feeder	400w horizontal motor + frequency control (Yatai)
F.Other	Most machine parts use standard parts
F.Other	Need to be equipped with a air compressor more than 1.5KW

4)Specific for Sticky Mouse Glue Traps Machine picture
